Data sets

Section 11.2 Data sets

The Pokémon CSV file from the previous section is an example of a data set, a collection of a bunch of pieces of information with the same structure. If you’ve ever used a spreadsheet with a bunch of rows of data organized into columns you’ve dealt with a dataset. For example here is bit of a spreadsheet containing data about students with columns for their first name, last name, email, and GPA.

🔗

Spreadsheet programs like Google Sheets or Microsoft Excel store data in tables and provide functions to manipulate and calculate with the data. In this section we’ll see how we can do similar things in a Java program.

🔗

Subsection 11.2.1 Working with data

Typically such programs work by looping over the values in the data set and accumulating specific values such as by totaling or counting them. In other words we can use the same algorithms we first learned about back in Section 5.3 Basic loop algorithms.

🔗

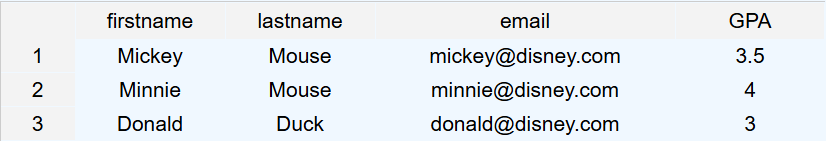

Sometimes looking at data in spreadsheet can help us plan an algorithm to answer a question about the data. For example, how could we find the average GPA of the students in the table above? Clearly, we would need to access each GPA value in the table and then add them up and then divide by the number of rows.

🔗

Activity 11.2.1.

Put the following pseudo code algorithm steps for calculating the average GPA of the students in the table above. Make sure some of the steps are indented to be inside the loop. Click on Check Me to see if you are right.

🔗

Initialize *sum* to 0.
---
Loop through each row in the table:
---
   Add the GPA value of each row to *sum*.
---
Divide *sum* by the number of rows in the table
to get the average GPA.

🔗

Activity 11.2.2.

What if your school wants to print out an honor roll of students?

🔗

Write pseudo code for an algorithm that prints out the names of students with a GPA of 3.5 or higher given a table of student data where one column is the GPA. Make sure you use repetition (loop) and selection (if) in your algorithm.

🔗

Subsection 11.2.2 Parsing data

In the previous section we saw how we can use methods like Scanner.nextLine or Files.readAllLines to get the contents of a file broken up into individual lines. But if we want to do computations with that data we will usually need to extract the individual parts of each line and maybe convert them into types like int or double to work with. The process of extracting structure from a linear sequence of such as the characters in a String is called parsing.

🔗

In this section we’ll look at some relatively simple kinds of parsing, turning the lines in a CSV file like pokemon.csv from the previous section into data we can work with.

🔗

If you take a look at the Pokémon CSV file, you’ll notice that each line contains multiple values separated by commas. These values are the attributes of a single Pokémon: its name, type, speed, etc. Often the first line of a CSV file is a header line, consisting of a comma-separated list of names of the attributes represented by each column. For instance the Pokémon CSV file starts with this header line:

🔗

Number,Pokemon,Type 1,Type 2,HP,Attack,Defense,Speed,PNG,Description

So our first task, if we want to do something more interesting with the Pokémon data than just counting how many lines are in the file, is to parse each line into the individual attribute values.

🔗

The String class provides a useful method split(String delimiter) that splits a string into an array of String values based on a specified delimiter which is a character like a comma or a space that separates the units of data. This method returns a String[] where each element in the array contains one substring from the original string.

🔗

String sentence = "A quick brown fox jumps";
// Split the sentence into words along spaces to create:
//  words = {"A", "quick", "brown", "fox", "jumps"}
String[] words = sentence.split(" ");

Here is an example of how to use the split method to split a line from the Pokémon csv file into individual attributes. Looking at header in the first line of the file, we can see that the 0th element of the data array is the Pokémon’s number, element 1 is the name, etc. We only need to save the data that we want to use. In this case, we want to save the name, type1, and imageFile.

🔗

// Split the line of data into an array of Strings
String[] data = line.split(",");
// Identify the data
// data: Number,Name,Type1,Type2,HP,Attack,Defense,Speed,PNG,Description
String name = data[1];
String type1 = data[2];
String imageFile = data[8];

Try the exercise below to display Pokémon images using the split method to extract names and URLs saved in the file.

🔗

Activity 11.2.3.

This program reads in some of the data from the Pokémon file into a String array of lines. Complete the randomPokemon method to print out a random pokemon name and its image using the split method. Run the program multiple times to see different Pokémon names and images.

🔗

import java.io.*;
import java.util.*;

public class PokeImages {
    private String filename = "pokemon.csv";
    private ArrayList<String> lines = new ArrayList<>();

/* This method reads lines from the file into the lines ArrayList */
    public void readFile() throws IOException {
        File myFile = new File(filename);
        Scanner scan = new Scanner(myFile);

// Skip the header line
        if (scan.hasNextLine()) scan.nextLine();

while (scan.hasNextLine()) {
            lines.add(scan.nextLine());
        }
        System.out.println("Read in " + lines.size() + " lines.");
        scan.close();
    }

/*
     * Write a function randomPokemon that picks a random line
     * and parses it and then prints out the Pokemon's name
     * and image
     */
    public void randomPokemon() {
        // 1. pick a random index into the lines array

// 2. get the line at that random index from the list lines

// 3. Use the split method to split the line into a String array data

// 4. Print out the name using the correct index in the split data
        //   (Check above for the correct index for the name)

// 5. Call the printHtmlImage method below
        //    with an element of the data array to print out the image.
        //    (Check above for the correct index for the image url)

}

public static void main(String[] args) throws IOException {
        PokeImages obj = new PokeImages();
        obj.readFile(); // fills the ArrayList lines
        obj.randomPokemon();
    }

// This method will just work on Runestone to print out images
    public static void printHtmlImage(String url) {
        System.out.print("<img src=" + url + " width=300px />");
    }
}
====
import static org.junit.Assert.*;

import org.junit.*;

import java.io.*;

public class RunestoneTests extends CodeTestHelper
{
   public RunestoneTests()
   {
       super("PokeImages");
   }

@Test
   public void randomTest()
   {
       boolean passed = checkCodeContains("(int)(Math.random()*lines.size()");
       assertTrue(passed);
   }

@Test
   public void splitCode()
   {
       boolean passed = checkCodeContains("call to split method", ".split");
       assertTrue(passed);
   }

@Test
   public void imageCode()
   {
       boolean passed =
               checkCodeContains("call to printHtmlImage", "printHtmlImage(");
       assertTrue(passed);
   }

@Test
   public void nameIndexCode()
   {
       boolean passed = checkCodeContains("the correct index for the name (1)", "[1]");
       assertTrue(passed);
   }

@Test
   public void imageIndexCode()
   {
       boolean passed = checkCodeContains("the correct index for the image url (8)", "[8]");
       assertTrue(passed);
   }
}

🔗

Subsection 11.2.3 Parsing strings to numbers

For values like a Pokémon’s name, using String is fine. But the attributes, HP, Attack, Defense, or Speed are numbers so if we want to answer questions about them, we will need to convert the String values we get from split into int or double values we can do math with.

🔗

The Integer and Double wrapper classes we learned about in Section 10.2 Wrapper classes also have some useful static methods for converting String values to int and double values. They are Integer.parseInt and Double.parseDouble.

🔗

static int parseInt(String s) returns the String argument as a signed int.
🔗

🔗
static double parseDouble(String s) returns the String argument as a signed double.
🔗

🔗

🔗

These methods are also listed on the Java Quick Reference Sheet provided during the AP exam. Here’s an example of using these methods:

🔗

Activity 11.2.4.

Run the code below to see useful parse methods in the Integer and Double wrapper classes.

🔗

Subsection 11.2.4 Coding Challenge: Pokémon speed

In the last lesson, we read in a file of Pokémon data. In this exercise, we will read in the file and calculate the average Pokémon speed and find the Pokémon with the highest speed. The speed is the 8th column in the file; when a row of data is split into an array with the index starting at 0, the speed will have the 7th index. We will use the Integer.parseInt method to convert the speed from a string to an integer so we can compare the speeds.

🔗

Project 11.2.5.

This program reads in each line from the pokemon file into a String array of lines. Complete the findMaxSpeed and findAverageSpeed methods below.

🔗

import java.io.*;
import java.util.*;

public class PokeSpeed {
    private String filename = "pokemon.csv";
    private ArrayList<String> lines = new ArrayList<>();

public PokeSpeed() throws IOException {
        readFile(); // read in the file
    }

public void readFile() throws IOException {
        File myFile = new File(filename);
        Scanner scan = new Scanner(myFile);

// Skip the header line if there is one
        if (scan.hasNextLine()) scan.nextLine();

while (scan.hasNextLine()) {
            lines.add(scan.nextLine());
        }
        System.out.println("Read in " + lines.size() + " lines.");
        scan.close();
    }

/*
     * Write a function findMaxSpeed that loops through the lines ArrayList,
     * splits it on commas to get the speed in the 7th index, and parses it
     * to compare to a maxSpeed. Keep track of the name of the fastest Pokemon
     * and at the end print that name and return the maxSpeed.
     */
    public int findMaxSpeed() {
        int maxSpeed = 0;
        String fastest = "";

// 1. Loop through lines

// 2. Split the line on commas into a data array

// 3. Use parseInt on the 7th indexed element of the data array to get the speed

// 4. If speed is larger than maxSpeed, update maxSpeed and maxPokemonName

// 5. Print out the name of the fastest Pokemon and return maxSpeed
    }

/*
     * Write a function findAverageSpeed that loops through the lines ArrayList,
     * splits it on commas to get the speed in the 7th index, and parses it to
     * add it to the total, and returns the average speed.
     */
    public double findAverageSpeed() {
        double totalSpeed = 0;

// 1. Loop through the lines, split, parse, and add up the speeds

// 2. Return the average speed
    }

public static void main(String[] args) throws IOException {
        PokeSpeed p = new PokeSpeed();
        System.out.println("Max speed: " + p.findMaxSpeed());
        System.out.println("Average speed: " + p.findAverageSpeed());
    }
}
====
import static org.junit.Assert.*;

import org.junit.*;

import java.io.*;

public class RunestoneTests extends CodeTestHelper
{
   public RunestoneTests() throws IOException
   {
       super("PokeSpeed");
   }

@Test
   public void parseTest()
   {
       boolean passed = checkCodeContains("Integer.parseInt");
       assertTrue(passed);
   }

@Test
   public void callFindMax() throws IOException
   {
        String output = getMethodOutput("findMaxSpeed");
        String expect = "140";
        boolean passed = getResults(expect, output, "Expected output from findMaxSpeed");
        assertTrue(passed);
    }

@Test
     public void callAvgSpeed() throws IOException
     {
            String output = getMethodOutput("findAverageSpeed");
            String expect = "68";
            boolean passed = output.startsWith(expect);
            passed = getResults(expect, output, "Expected output from findAverageSpeed", passed);
            assertTrue(passed);
     }

@Test
   public void splitCode()
   {
       boolean passed = checkCodeContains("call to split method", ".split");
       assertTrue(passed);
   }

@Test
   public void speedIndexCode()
   {
       boolean passed = checkCodeContains("the correct index for the speed (7)", "[7]");
       assertTrue(passed);
   }
}

🔗

Subsection 11.2.5 Representing CSV data with objects

While we can always get at the data from each row of a CSV file by splitting individual lines into String arrays and then parsing the individual values as needed, it’s a bit cumbersome to keep track of which indexes go with which attributes and to read code that uses those indexes everywhere.

🔗

We can make our code a lot easier to understand if we define a class to represent the set of attributes from a single line. In this case that would be a Pokemon class where each instance represents a single Pokémon.

🔗

Then we can load our CSV file into an ArrayList of Pokemon objects by parsing each line (except the header) into the attributes for one Pokémon and using them to construct a Pokemon object. Then in the rest of our program we can use getters defined in the Pokemon class to access the attributes of different Pokémon without having to remember which index to use.

🔗

To use this approach we must first create a Pokemon class with instance variables for the attributes we care about, and a constructor that initializes these variables. Assuming that we have already written the Pokemon class and constructor, the following code creates a Pokemon object from the data using its constructor and saves it into an array of Pokemon objects.

🔗

// Create a list to hold Pokemon objects
ArrayList<Pokemon> pokemon = new ArrayList<>();

// Skip the header line
if (scan.hasNextLine()) scan.nextLine();

while (scan.hasNextLine()) {
    String line = scan.nextLine();
    String[] data = line.split(",");

    // Create a Pokemon object from the data and add to list.
    pokemon.add(new Pokemon(data[1], data[2], Integer.parseInt(data[7]), data[8]));
}

Note that this code skips the first line in the file since it contains column headers, not data about a Pokémon. Usually CSV files have a header line but not always; we need to know whether or not they do to process them correctly.

🔗

Subsection 11.2.6 Coding Challenge: list of Pokémon from input file

Let’s end with a challenge that combines all the skills you have learned so far. You could work in pairs for this challenge.

🔗

Project 11.2.6.

Create a class Pokemon that has at least three attributes that can be found in the Pokémon file, including its name, type1, and imagefile, and any other attributes from the file that you would like. Write a constructor and getters for these attributes.

🔗

Then, read in the data from the pokemon file, skipping the header row, split each line, and save the data in an array of Pokemon objects.

🔗

Write a findType method that returns to the type of a Pokemon given its name as an argument. It should loop through the array to find the right Pokemon object using the getName and getType methods that you will write. It should also display the image for the Pokémon.

🔗

import java.io.*;
import java.util.*;

class Pokemon {
    // 1. Add at least 3 String attributes of a Pokemon
    //   including name, type1, and imagefile

// 2. Add a constructor that initializes the attributes of a Pokemon
    //  to the values given as arguments

// 3. Add getters for the attributes

}

public class PokemonCollection {
    private ArrayList<Pokemon> pokemon = new ArrayList<>();
    private String filename = "pokemon.csv";

public PokemonCollection() throws IOException {
         readFile(); // read in the data file into pokemonArray
    }

// 4. Write a method to read in the data file (it may throw an exception).
    // Loop through each row to split it into attributes.
    //     Create a new Pokemon object from the attributes.
    //     and save it into the pokemonArray
    // Remember to skip the header line.
    public void readFile() {

}

// 5. Write a findType method that prints out the type of a Pokemon
    // given its name as an argument.
    //
    // It should loop through the array to find the Pokemon object with
    // the correct name.
    //
    // It should use printHtmlImage to emit the image and then return the type.
    public String findType(String name) {
        // Loop through the array to find the Pokemon with the given name
        // Call the getType method to get the type of the Pokemon
        // Call the printHtmlImage method to print out the image and then
        // return the type
        return null;
    }

// This method will just work on Runestone to print out images
    public static void printHtmlImage(String url) {
        System.out.print("<img src=" + url + " width=300px />");
    }

public static void main(String[] args) throws IOException {
        PokemonCollection collection = new PokemonCollection();
        // Call your method to find the type of a Pokemon and display its image
        System.out.println("Pikachu's type is " + collection.findType("Pikachu"));

}
}
====

import static org.junit.Assert.*;

import org.junit.*;

import java.io.*;

public class RunestoneTests extends CodeTestHelper
{
    public RunestoneTests() throws IOException
    {
        super("PokemonArray");
    }

@Test
    public void testPrivateVariables()
    {
        String code = getCode();
        int count = countOccurences(code, "private");
        boolean passed = count >= 3;
        getResults("3", count + "", "Number of private instance variables", passed);
        assertTrue(passed);
    }

@Test
    public void testConstructor()
    {
        boolean passed = checkCodeContains("Pokemon constructor", "public Pokemon(");
        assertTrue(passed);
    }

@Test
    public void splitCode()
    {
        boolean passed = checkCodeContains("call to split method", ".split");
        assertTrue(passed);
    }

@Test
    public void callFindType1() throws IOException
    {
         Object[] args = {"Pikachu"};
         String output = getMethodOutput("findType", args);
         String expect = "Electric";
         boolean passed = getResults(expect, output, "Expected output from findType(\"Pikachu\")");
         assertTrue(passed);
     }
     @Test
    public void callFindType2() throws IOException
    {
         Object[] args = {"Bulbasaur"};
         String output = getMethodOutput("findType", args);
         String expect = "Grass";
         boolean passed = getResults(expect, output, "Expected output from findType(\"Bulbasaur\")");
         assertTrue(passed);
     }
}

🔗

Subsection 11.2.7 Optional challenge with a dataset

If your class has time, you can try the following open-ended challenge that uses a dataset of your choice. You could work in pairs for this challenge. Choose a dataset from the files pokemon.csv, WorldIndicators2000.csv, or StateData2020-CDC-Census.csv to read into an array of objects. The activecode window below is set up to use these files. Look at the columns of the dataset you have chosen at the bottom of this web page to decide on the name and at least 3 attributes for your class. Each row in the data file will be an object of your class that you will add to the array. If you find another data CSV file online that you would like to use, you can read from a URL instead of a file in Java using the java.net package following the directions here https://docs.oracle.com/javase/tutorial/networking/urls/readingURL.html.

🔗

After you have chosen an input file, use the Pokémon exercise in the section above as a guide to:

🔗

Design a class for the input file that you have chosen. Choose at least 3 attributes that can be found in the file for your class. Write a constructor that takes in these attributes as parameters and saves them into instance variables. You may need to add some getters and a toString method as well.
🔗

🔗
Declare an array of your class type.
🔗

🔗
Read in the data from the file.
🔗

🔗
Inside a loop, split each line into its attributes and create an object for your class using its constructor. Add the object to the array.
🔗

🔗
Do something interesting with the data using a loop, for example you could find the maximum or minimum value of an attribute or print out all the objects that have the same attribute value.
🔗

🔗

🔗

Project 11.2.7.

Input File Challenge: Design the class for your input file that has at least 3 attributes that can be found in the file. Then, read in the data from the file, split each line, and save the data in an array of objects. Finally, do something interesting with the data using a loop, for example you could find the object with the max or min attribute value or print out all the objects of a certain attribute value. You can use the files pokemon.csv, WorldIndicators2000.csv, or StateData2020-CDC-Census.csv.

🔗

import java.io.*;
import java.util.*;

/* Change this class name to a meaningful name for one record from the dataset. */
class OneItem {
    // Add at least 3 attributes found in the data file

// Add a constructor that initializes the attributes

// Add any getters and toString methods that you need
}

/* Change this class name to a meaningful name for the whole dataset. */
public class Data {
    // Declare an ArrayList of your class type

// Write a method to read in the data (it may throw an exception).
    // Use a while loop to split each row into attributes.
    //     Create a new  object from the attributes.
    //     and save it into the array.

// Write a method that does something with the data
    // with a for loop, for example
    // find the object with a min or max attribute value
    // or print out all the objects of a certain attribute value.

public static void main(String[] args) throws IOException {
        Data obj = new Data(); // change to your class name
        // Call your method to read in the data

// Call your method to do something with the data

}
}
====

import static org.junit.Assert.*;

import org.junit.*;

import java.io.*;

public class RunestoneTests extends CodeTestHelper
{
    @Test
    public void testPrivateVariables()
    {
        String code = getCode();
        int count = countOccurences(code, "private");
        boolean passed = count >= 3;
        getResults("3", count + "", "Number of private instance variables", passed);
        assertTrue(passed);
    }

@Test
    public void splitCode()
    {
        boolean passed = checkCodeContains("call to split method", ".split");
        assertTrue(passed);
    }
    @Test
    public void whileCode()
    {
        boolean passed = checkCodeContains("while loop", "while");
        assertTrue(passed);
    }
    @Test
    public void forCode()
    {
        boolean passed = checkCodeContains("for loop", "for");
        assertTrue(passed);
    }
}

🔗

Subsection 11.2.8 Summary

(AP 4.2.A.1) A data set is a collection of specific pieces of information or data.
🔗

🔗
(AP 4.2.A.2) Data sets can be manipulated and analyzed to solve a problem or answer a question. When analyzing data sets, values within the set are accessed and utilized one at a time and then processed according to the desired outcome.
🔗

🔗
(AP 4.2.A.3) Data can be represented in a diagram by using a chart or table. This visual can be used to plan the algorithm that will be used to manipulate the data.
🔗

🔗
(AP 4.6.A.1) A file is storage for data that persists when the program is not running. The data in a file can be retrieved during program execution.
🔗

🔗
(AP 4.6.A.2) A file can be connected to the program using the File and Scanner classes.
🔗

🔗
(AP 4.6.A.3) A file can be opened by creating a File object, using the name of the file as the argument of the constructor. File(String str) is the File constructor that accepts a String file name to open for reading, where str is the pathname for the file.
🔗

🔗
(AP 4.6.A.4) When using the File class, it is required to indicate what to do if the file with the provided name cannot be opened. One way to accomplish this is to add throws IOException to the header of the method that uses the file. If the file name is invalid, the program will terminate.
🔗

🔗
(AP 4.6.A.5) The File and IOException classes are part of the java.io package. An import statement must be used to make these classes available for use in the program.
🔗

🔗
(AP 4.6.A.6) The following Scanner methods and constructor—including what they do and when they are used—are part of the Java Quick Reference (p. 2) provided during the AP CSA exam:
🔗
- Scanner(File f) the Scanner constructor that accepts a File for reading.
  🔗

  🔗
- int nextInt() returns the next int read from the file or input source. If the next int does not exist, it will result in an InputMismatchException. Note that this method does not read the end of the line, so the next call to nextLine() will return the rest of the line which will be empty.
  🔗

  🔗
- double nextDouble() returns the next double read from the file or input source. If the next double does not exist, it will result in an InputMismatchException.
  🔗

  🔗
- boolean nextBoolean() returns the next Boolean read from the file or input source. If the next boolean does not exist, it will result in an InputMismatchException.
  🔗

  🔗
- String nextLine() returns the next line of text up until the end of the line as a String read from the file or input source; returns the empty string if called immediately after another Scanner method like nextInt that is reading from the file or input source;returns null if there is no next line.
  🔗

  🔗
- String next() returns the next String up until a white space read from the file or input source.
  🔗

  🔗
- boolean hasNext() returns true if there is a next item to read in the file or input source; false otherwise.
  🔗

  🔗
- void close() closes the input stream.
  🔗

  🔗
🔗
🔗
(AP 4.6.A.7) Using nextLine and the other Scanner methods together on the same input source sometimes requires code to adjust for the methods’ different ways of handling whitespace.
🔗

🔗
(AP 4.6.A.8) The following additional String method—including what it does and when it is used—is part of the Java Quick Reference provided during the AP CSA Exam:
🔗
- String[] split(String del) returns a String array where each element is a substring of this String, which has been split around matches of the given expression del.
  🔗

  🔗
- For example, String[] data = line.split(","); splits a line from a csv file along the commas and saves the substrings into the array data.
  🔗

  🔗
🔗
🔗
(AP 4.6.A.9) A while loop can be used to detect if the file still contains elements to read by using the hasNext method as the condition of the loop.
🔗

🔗
(AP 4.6.A.10) A file should be closed when the program is finished using it. The close method from Scanner is called to close the file.
🔗

🔗

🔗

You have attempted of activities on this page.

🔗

Prev Top Next
